Description

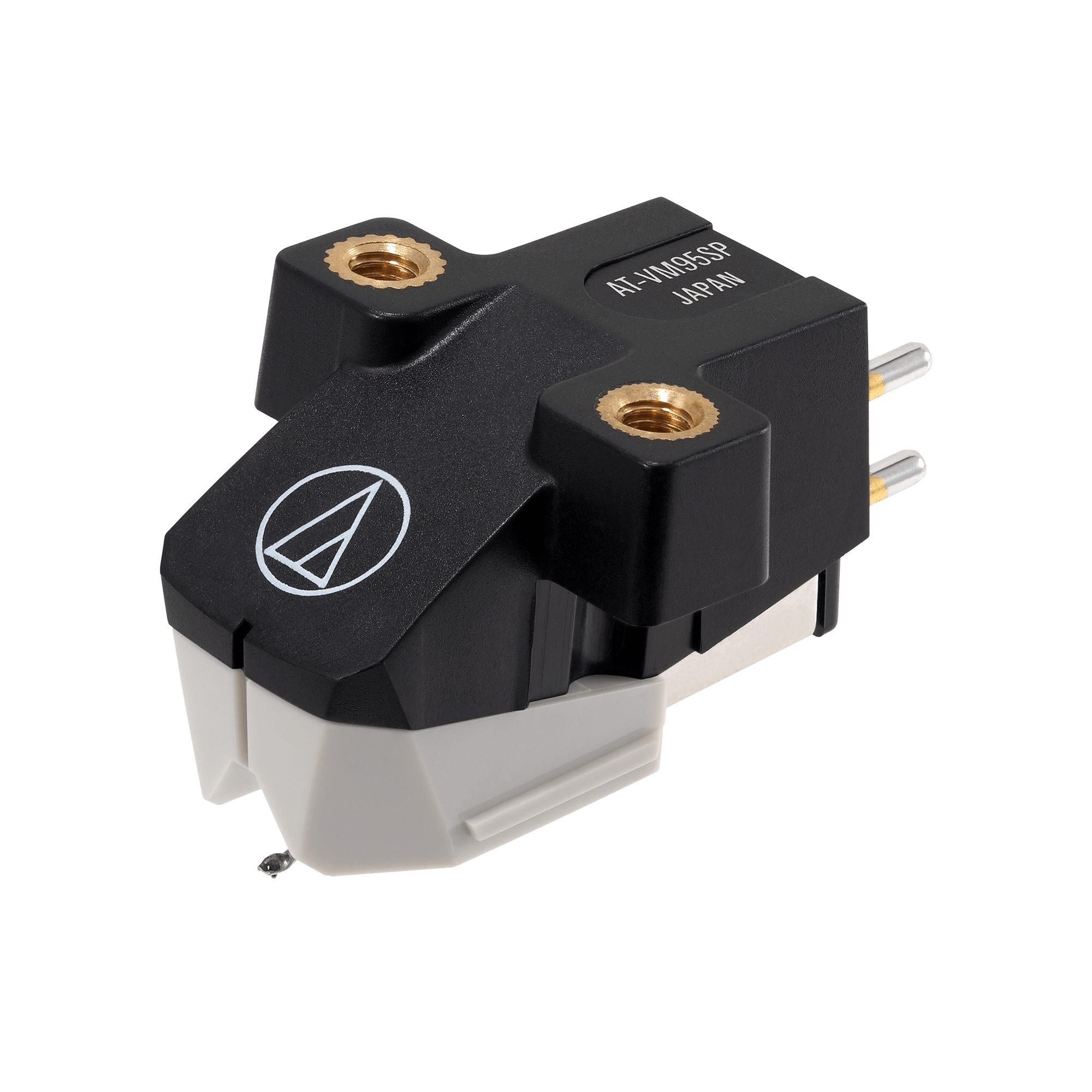

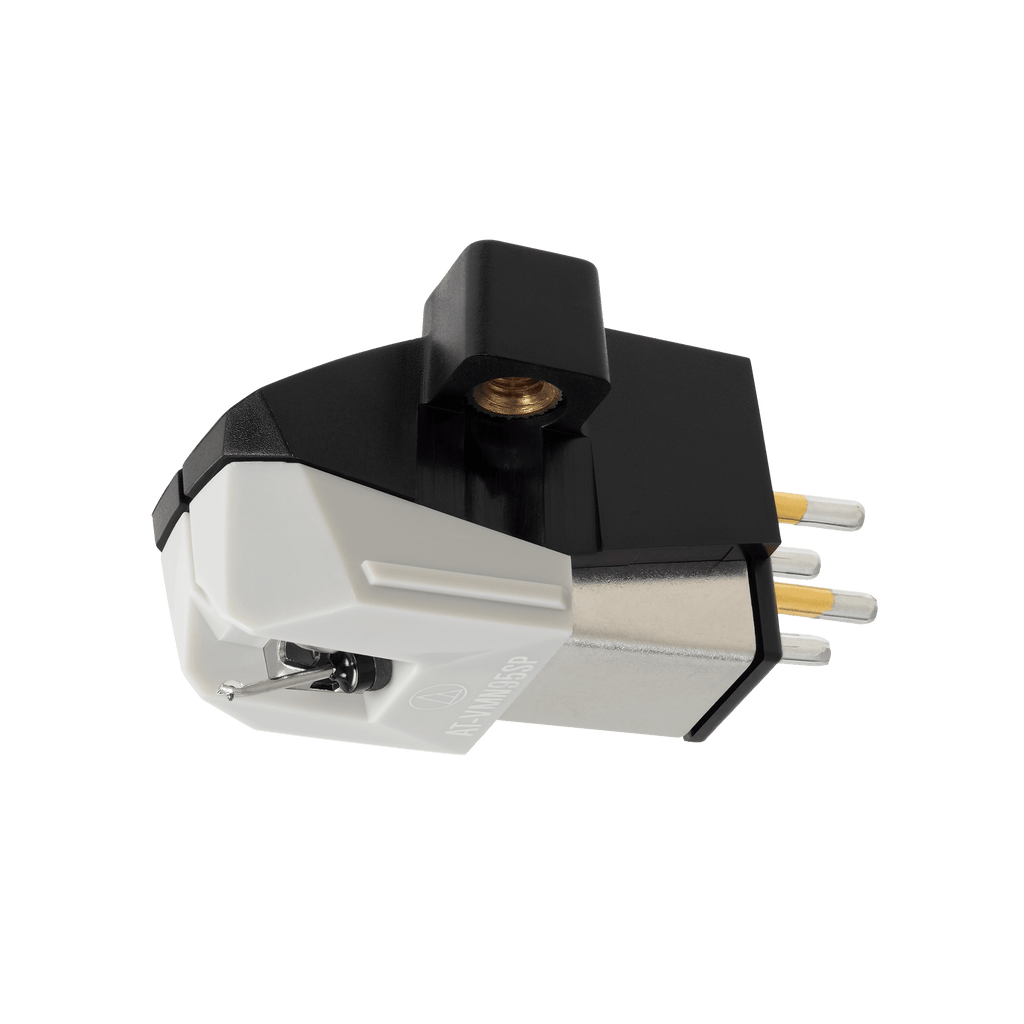

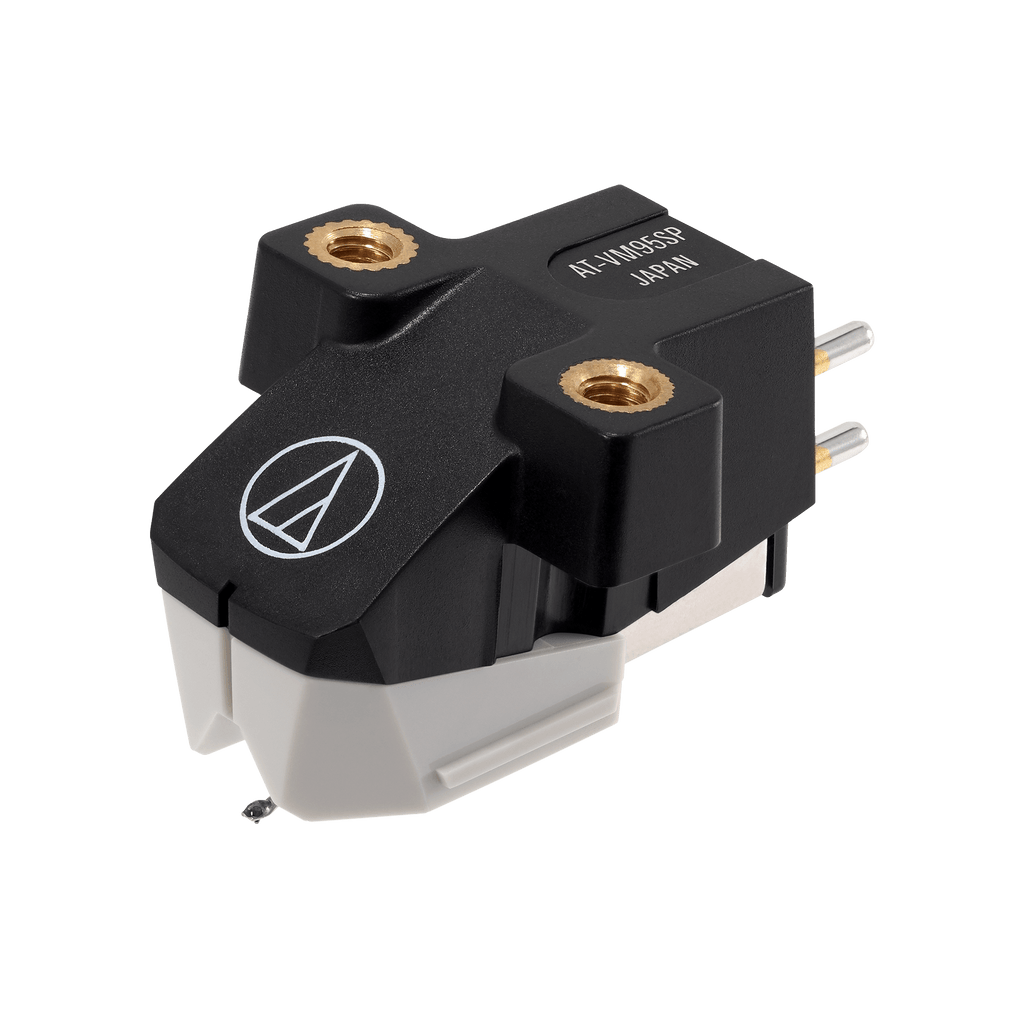

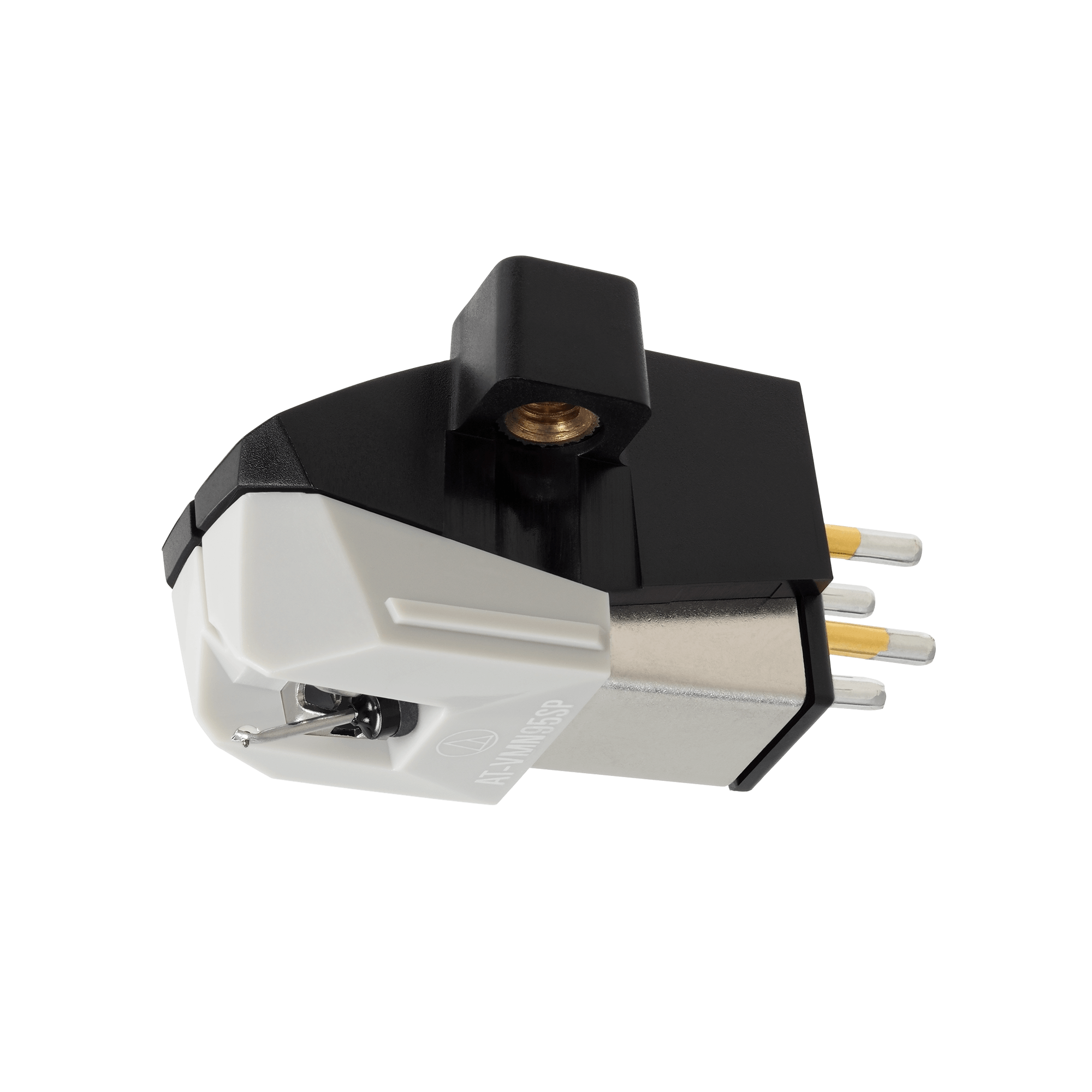

Audio-Technica AT-VM95SP – VM95 Series 78rpm SP Cartridge
The Audio-Technica AT-VM95SP is engineered specifically for shellac 78rpm records, delivering superior playback accuracy with reduced surface noise. Designed as part of the VM95 Series, this cartridge offers specialist performance for collectors and archivists working with historic mono recordings.

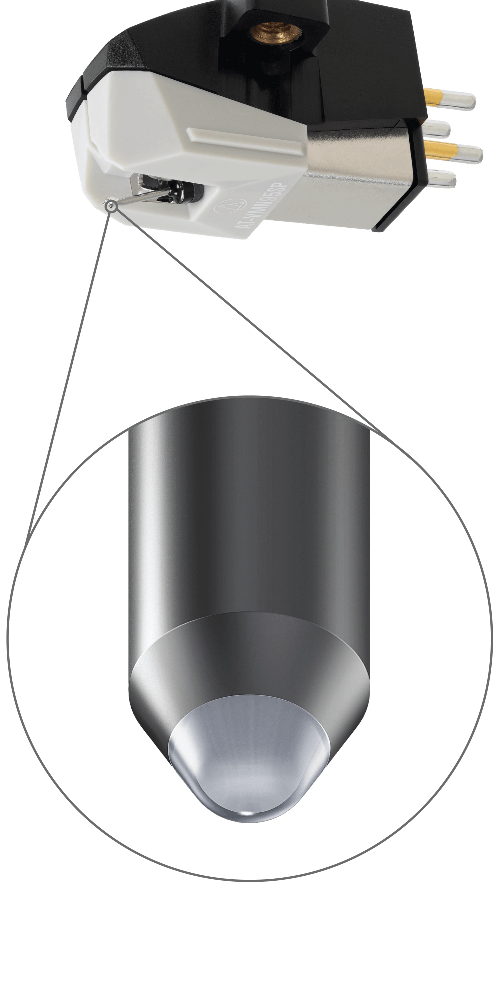

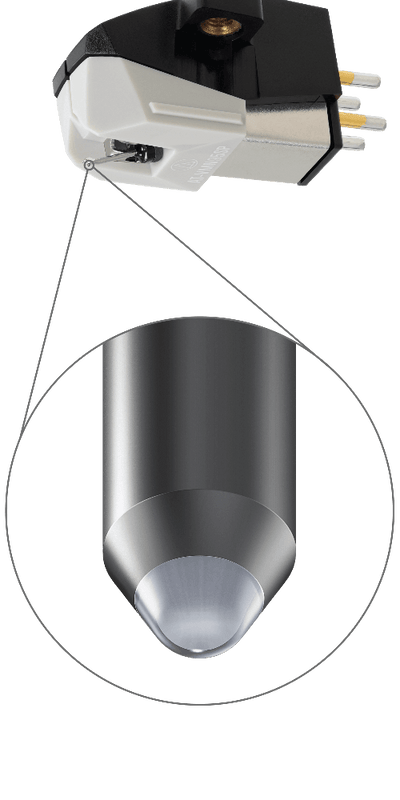

Featuring a robust 3mil SP stylus tip and aluminium cantilever, it provides precise groove tracking while helping to reduce distortion and surface artefacts commonly found on older discs. When used with the “Mono ON” function of a stereo phono stage, or paired with a dedicated archiving preamp that can sum or isolate channels, the AT-VM95SP helps extract the cleanest possible audio from vintage mono grooves.
With a 2.7mV output and compatibility across all VM95 stylus assemblies, this cartridge also offers the long-term benefit of simple stylus replacement — you only replace the stylus, not the whole cartridge.
A smart choice for anyone serious about 78rpm playback and restoration, the AT-VM95SP delivers specialist performance with the long-term flexibility of the VM95 platform.
Specifications
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20 - 20,000 Hz |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 4.5 to 5.5g (standard 5.0g) |
| Stylus Construction | Bonded Round Shank |
| Recommended Load Impedance | 47,000 Ω |
| Coil Impedance | 3.3 kΩ (1 kHz) |
| DC Resistance | 485 Ω |
| Coil Inductance | 550 mH (1 kHz) |
| Output Voltage | 2.7 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance | 1.5 dB (1 kHz) |
| Stylus Shape | SP 3 mil Conical Bonded |
| Cantilever | Aluminium Pipe |
| Static Compliance | 12 x 10 – 6 cm / dyne |
| Dynamic Compliance | 2 x 10 – 6 cm / dyne (100 Hz) |
| Mounting | 1/2” centres |
| Cartridge Weight | 6.1g |
| Dimensions | 17.2 x 18.9 x 28.3 ( H x W x D mm) |

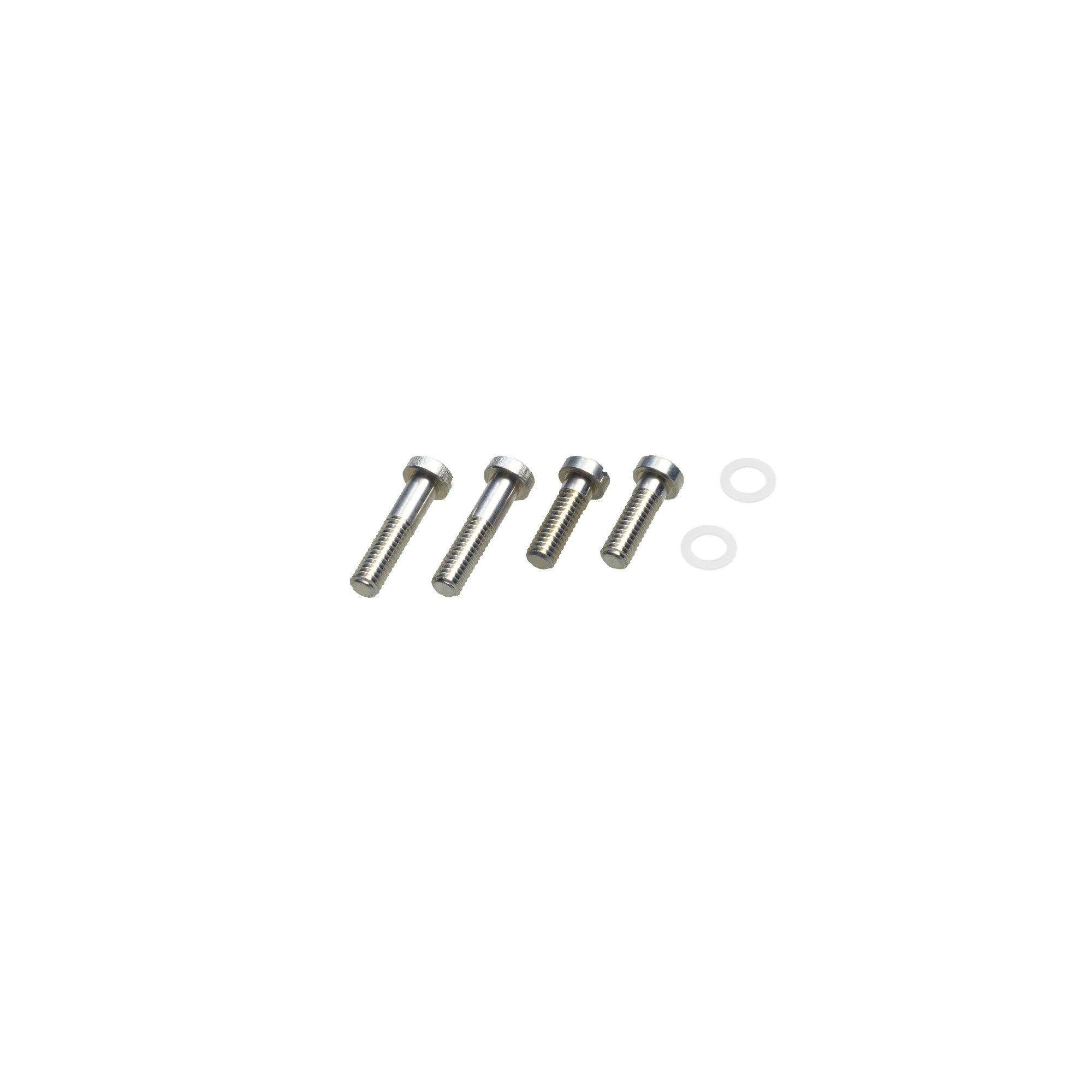

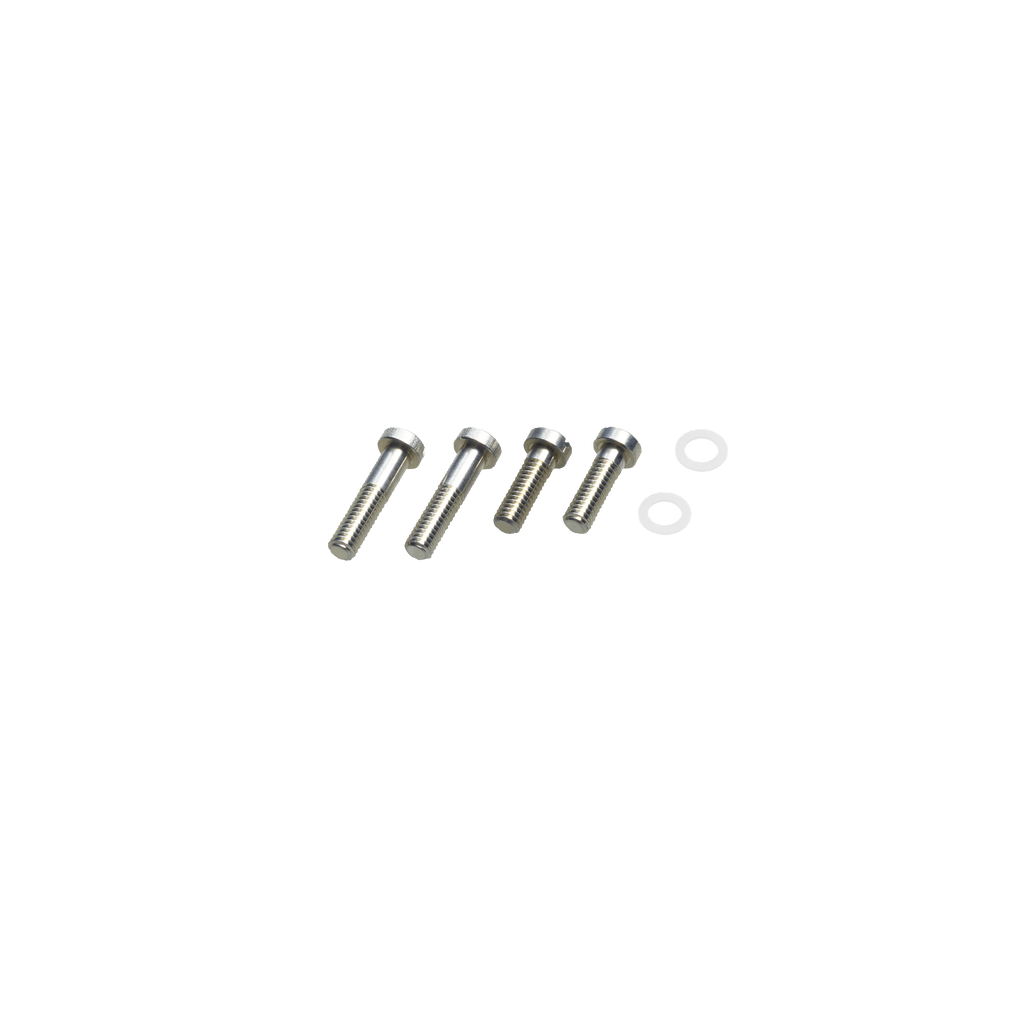

| Accessories Included | Two 11 mm installation screws; Two 8 mm installation screws; Two washers |
| Model | AT-VM95SP |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | AT-VMN95SP |
| Stylus Size | 3 mil |

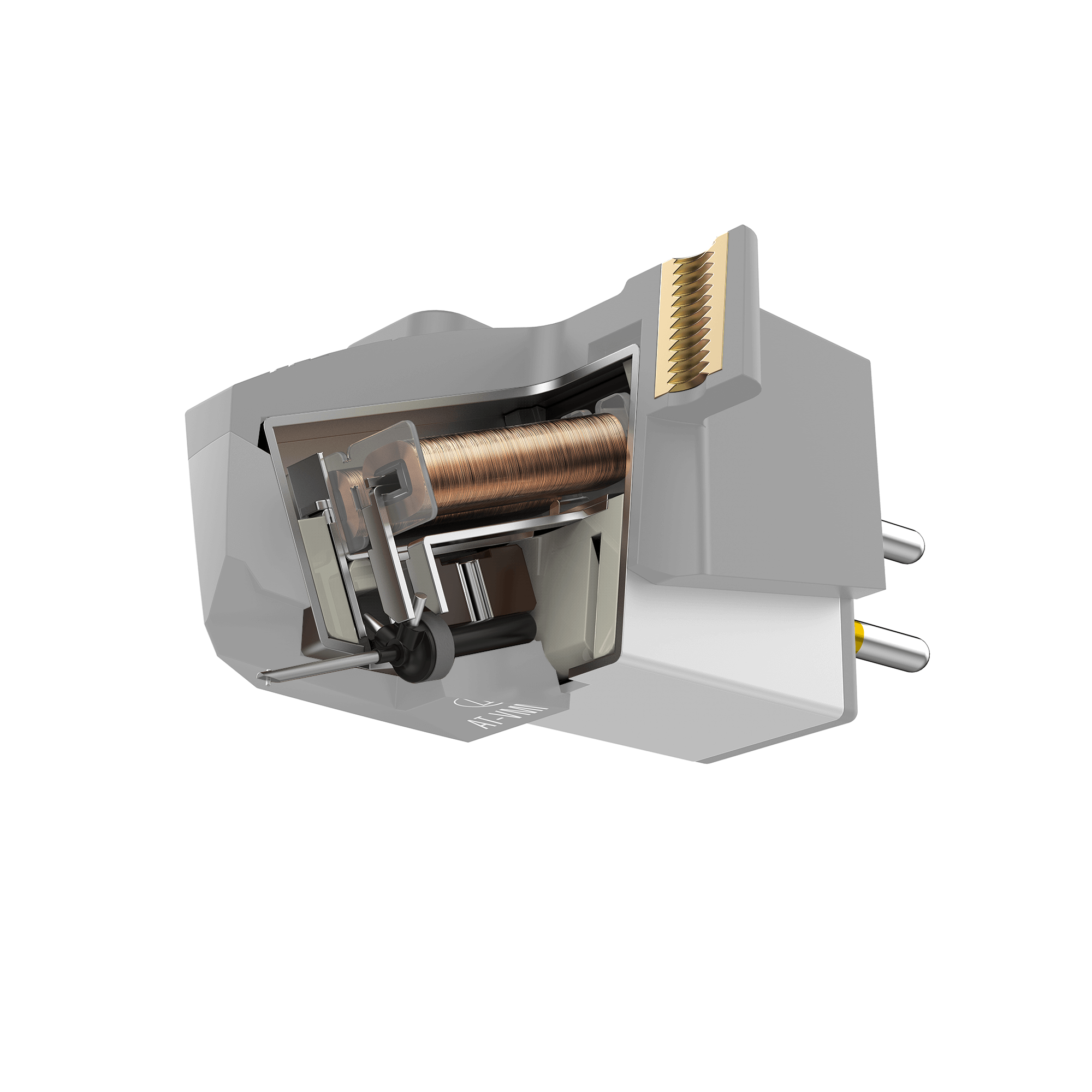

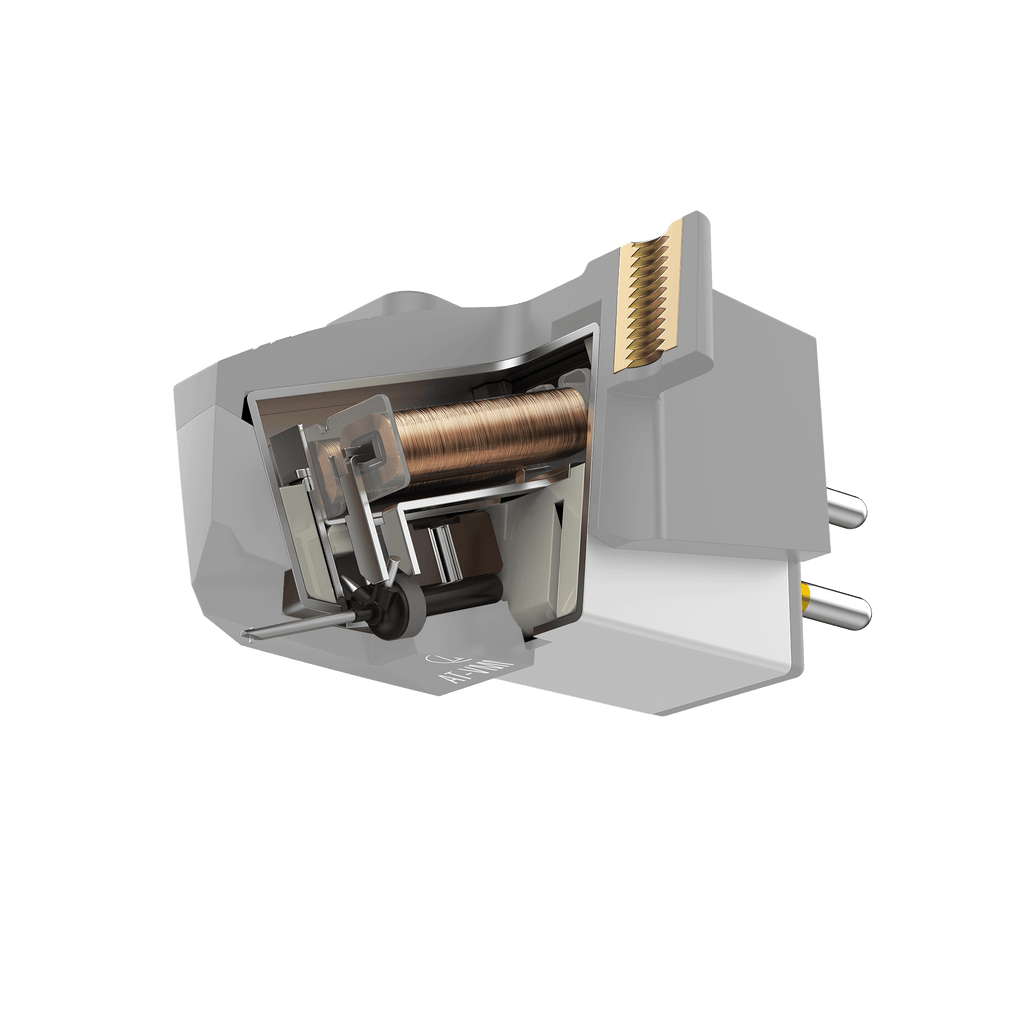

| Type | VM Stereo Dual Magnet |
| Wire Used for Coil | T.P. Copper |
