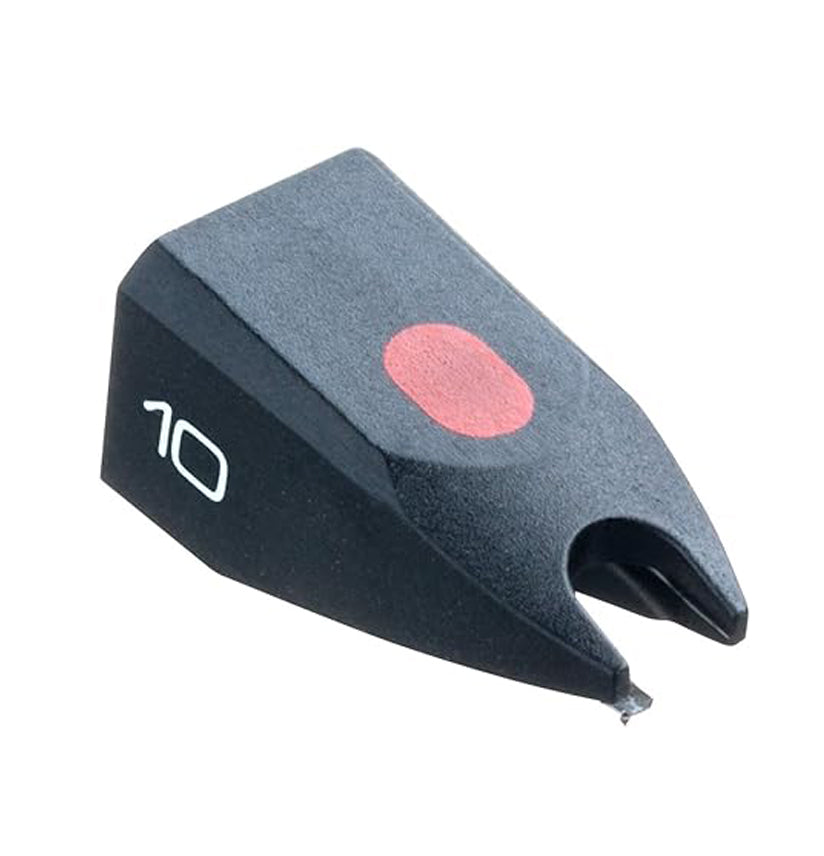

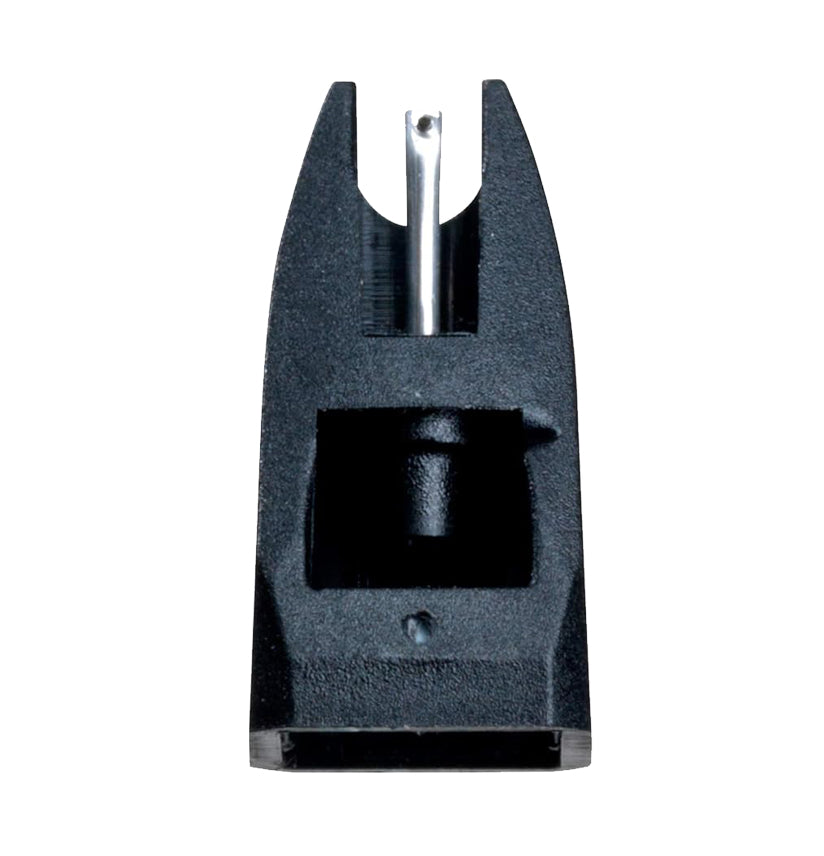

Ortofon Stylus 10 Replacement Stylus For OM Cartridges
Ortofon Stylus 10 Replacement Stylus For OM Cartridges
Description
Ortofon Stylus 10 Replacement Stylus For OM Cartridges
The Ortofon Stylus 10 is a replacement and upgrade stylus for the Ortofon OM Cartridge range.
This replacement stylus is recommended for the following cartridge models: Super OM 10, OM 10, OMP 10, OMB 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, TM 10H, LMB 12, SMB 12, LMA 12. It's also the ideal upgrade stylus for the OM5E cartridge, which is fitted to, amongst other turntables, the Pro-Ject Essential.
Please note, all cartridges within the OM range have the same fitting, so they can all fit the Stylus 5, Stylus 5E, Stylus 10, Stylus 20, Stylus 30, Stylus 40 and Stylus 78.
Specifications
Frequency range: 20-24,000 Hz
Frequency response: 20-20,000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force*): 70 µm
Compliance, dynamic, lateral: 25 µm/mN
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 1-1.8 g (12.5-17.5 mN)
Tracking force, recommended: 1.5 g (15 mN)
Tracking angle: 20°
Stylus colour: Black
