Monitor Audio CSS230 Creator Series In-Ceiling Speaker Single
Monitor Audio CSS230 Creator Series In-Ceiling Speaker Single
Discover the CSS230, a marvel of innovation in back-box design with an astonishingly shallow 50mm (2") mounting depth, meticulously crafted to deliver hi-fi levels of performance in spaces previously considered challenging for high-quality speakers.
Designed for seamless installation between 2" stud frames or in areas where pipework or cabling limits mounting depth, the CSS230 features a hybrid back-box construction and a proprietary full-range driver array, ensuring consistent audio quality with exceptional versatility.
The hybrid back-box design offers the best of both worlds for both installers and customers. The trio of proprietary 3" mid-bass units, when combined, achieves the bass output equivalent to a 6 1/2" driver, all within a super-stealthy flush-fitted profile.
True to Monitor Audio's renowned design standards, the crossover is crafted with high-quality film capacitors and low-loss inductors, carefully selected for signal integrity. This meticulous design ensures unparalleled audio detail and dynamics from a speaker of its size and application. In 'ported' mode, a fine gauze protects the acoustic system from dust ingress, adding to the durability and longevity of the CSS230. Elevate your audio experience with a speaker that redefines possibilities in challenging spaces. Upgrade your sound with Monitor Audio's commitment to excellence in audio engineering!
Technology
- Super-slim mounting depth 50mm (2”) designed to fit within 2” stud walls or where space is restricted
- Hybrid CP ‘Controlled Performance’ style, enclosed or open back-box option provides flexible high performance options and sound isolation in one (pictured right)

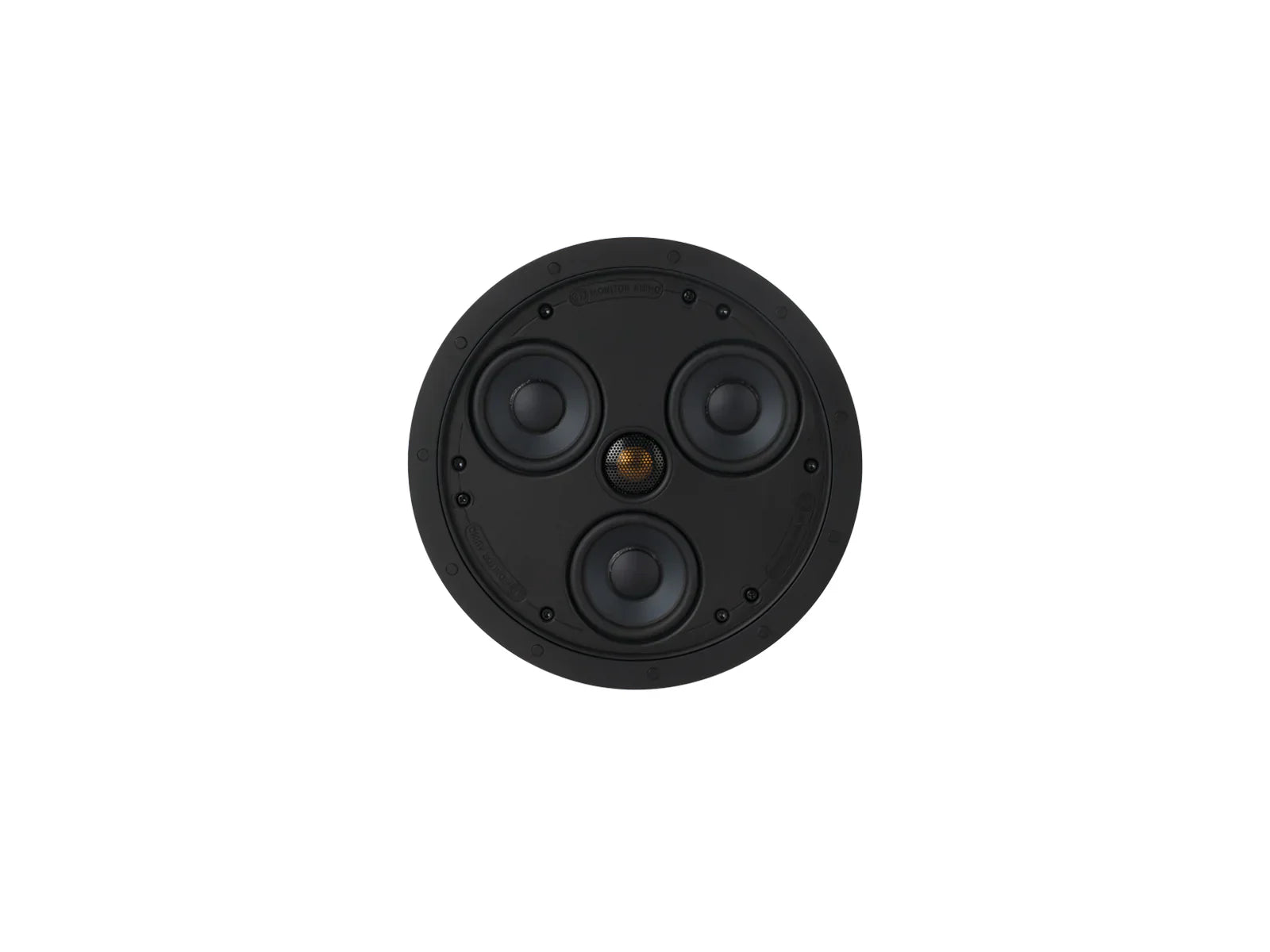

- Driver configuration of three 3” C-CAM bass/mid-range drivers in a radial array around a 19mm C-CAM gold dome tweeter (fixed position) and high quality crossover design offers Monitor Audio’s award-winning signature sound quality
- Gold plated sprung push terminals are reliable and easy to connect

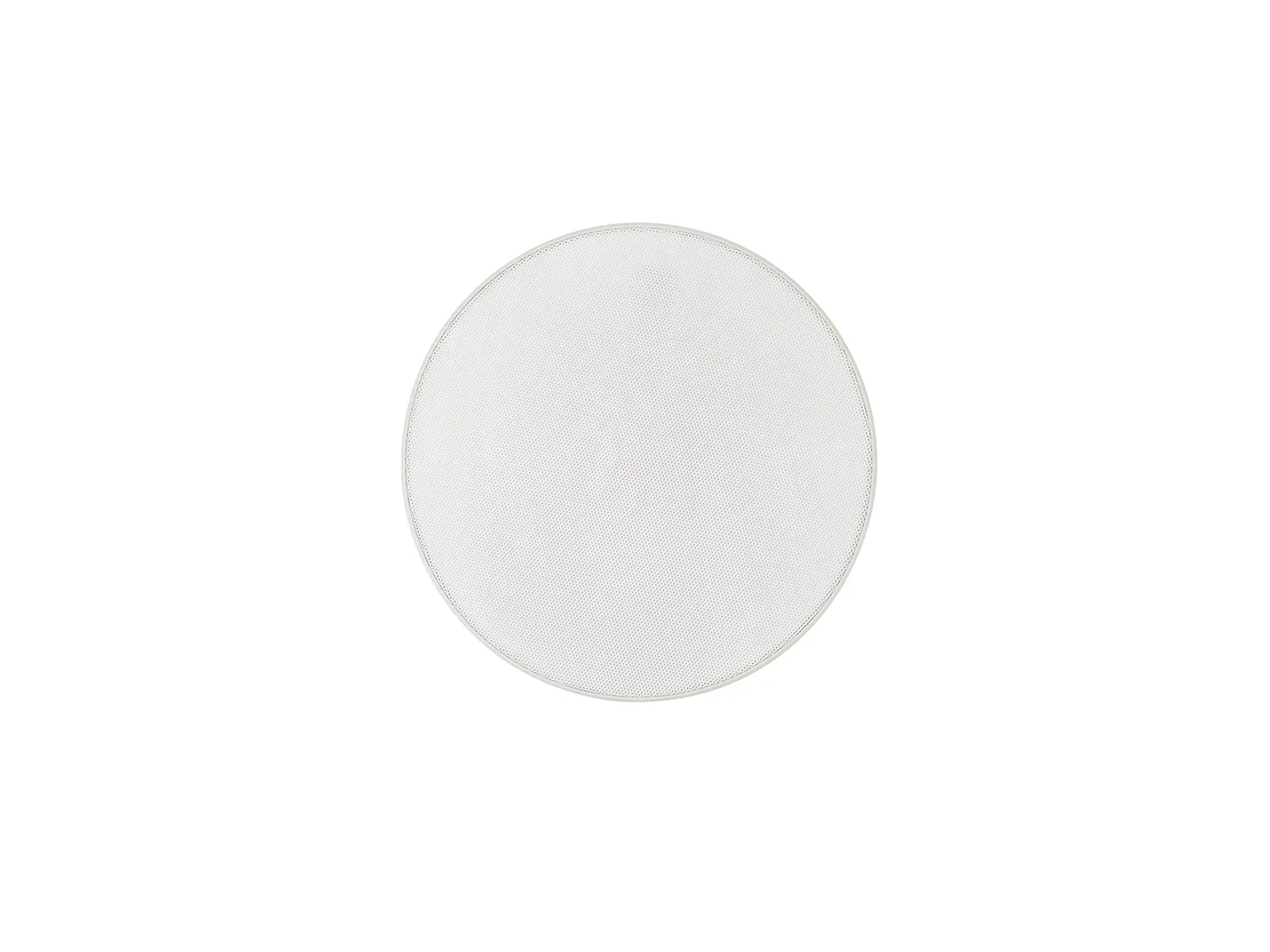

- Magnetically attached ‘Trim-less’ round and square grille options for discreet, reliable and easy servicing, flexible in-wall/ceiling installation, paintable to blend with décor
- Patented Tri-Grip dog leg fixings – Reliable, robust and quick to install
- Existing pre-construction bracket for easier system design and planning
-
Enclosure Type: Closed
-
Fire Rating: Unspecified
-
Guarantee Period (Months): Lifetime
-
Output: Mono
-
Power Type: Passive
-
Stereo Music
-
Visible Colour: White
-
Visible Shape: Circular
-
Cutout Diameter (mm): 211
-
Mounting Depth (mm): 50
-
Overall Depth (mm): 53
-
Overall Diameter (mm): 250
-
Compatible Amplifier (Watts RMS): 40 - 100
-
Frequency range (Hz): 100 - 30000
-
Nominal Impedance (Ω): 8
-
Max Power High (Watts): 100
-
Sensitivity (dB): 86
-
Sound Pressure (dB): 103.8
- Bass: 3
- Biggest Driver Size (mm): 76
- Tweeter: 1
