Monitor Audio WSS230 Creator Series In-Wall Speaker Single

Monitor Audio WSS230 Creator Series In-Wall Speaker Single

The Monitor Audio Super Slim WSS range introduces exciting possibilities for speaker placement. With its innovative design, the WSS230 incorporates renowned C-CAM metal cone drivers, enhancing sonic precision and detail. Positioned as a step-up from the WSS130, this Super Slim in-wall model is ideal for projects demanding even more critical music reproduction.

The WSS230 challenges conventional thinking by seamlessly fitting into constructions featuring 2" studs. Whether facing mounting constraints due to AVC ducts, cabling, or pipework, this in-wall speaker, and others in the range, effortlessly accommodate such challenges. When installed in a horizontal (portrait) orientation between standard 14" stud bays, these speakers offer versatility for creating a neat and identical L-C-R performance around a screen.

Monitor Audio ensures the longevity and safety of the WSS230 with a specially designed protective cover that shields the drivers and crossover from damage by residual masonry or building materials. The trim-less grille not only offers protection but also presents a discreet and low-profile aesthetic. These covers are paintable for seamless décor integration, with the supplied replacement scrim maintaining the speaker's stealthy presence post-decoration. The strong, magnetically attached rare earth magnets guarantee long-term security while facilitating easy installation and servicing. Elevate your audio experience with the WSS230, where innovation meets superior sound quality. Upgrade your space with Monitor Audio's commitment to excellence in audio engineering!

Key Features

• Good, better, best performance levels

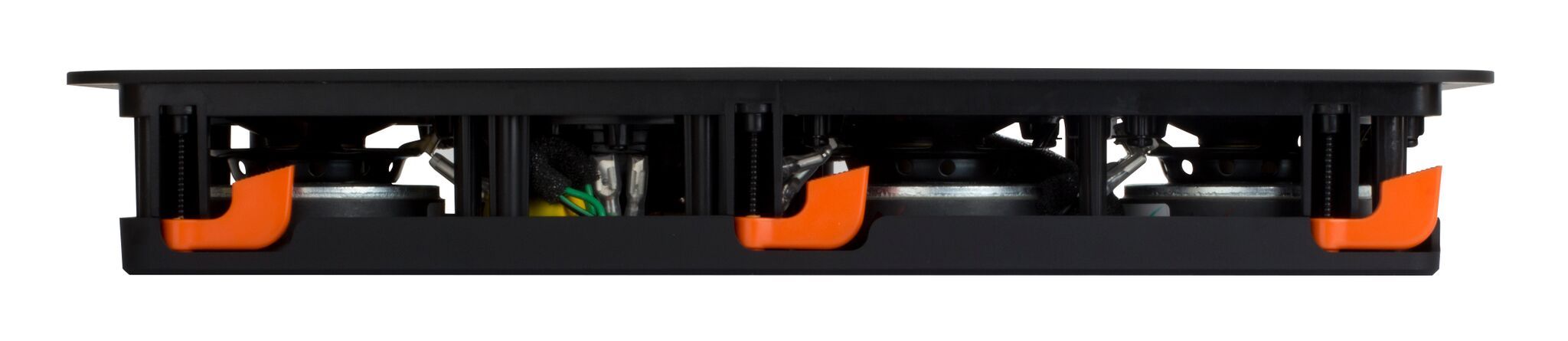

• Super-slim depth 50 mm (2") – designed to fit in 2" stud walls or where space is restricted
• Designed for portrait or landscape installation – fits between standard 14" stud bays
• Elegant, slim profile only 385 x 140 mm wide

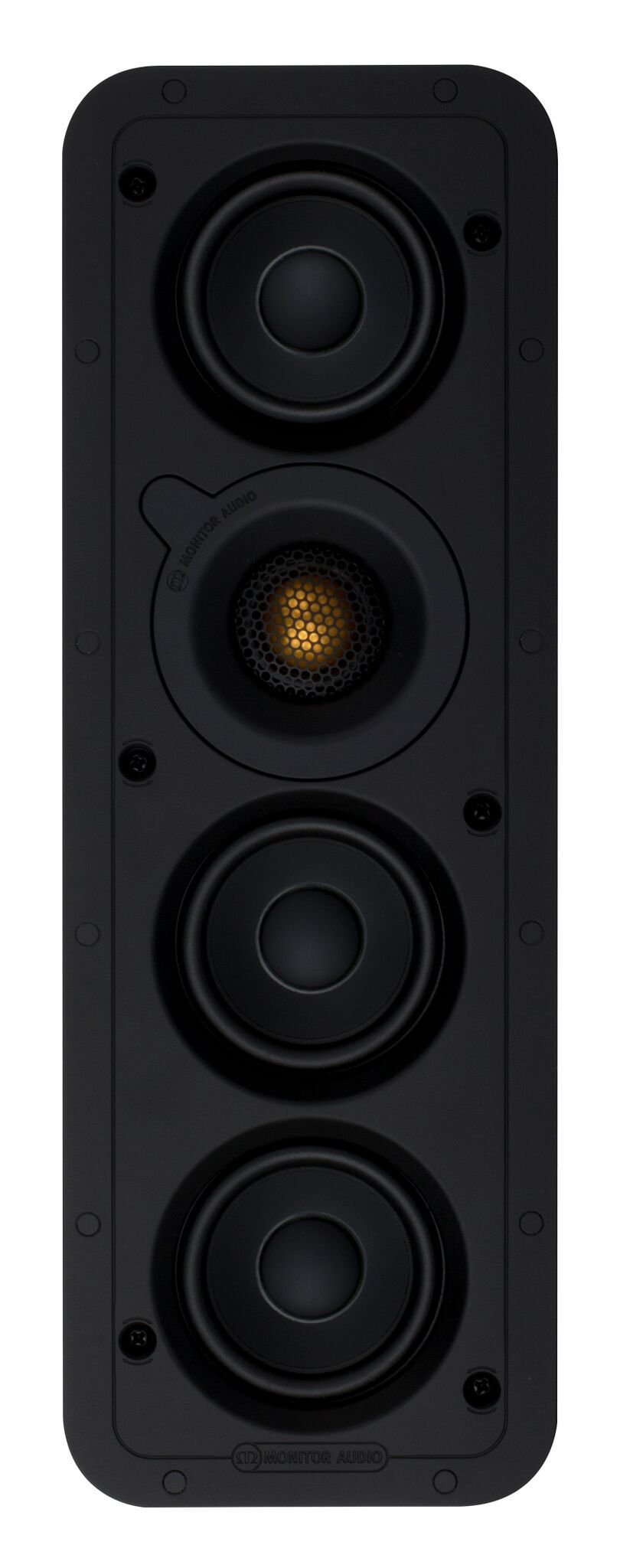

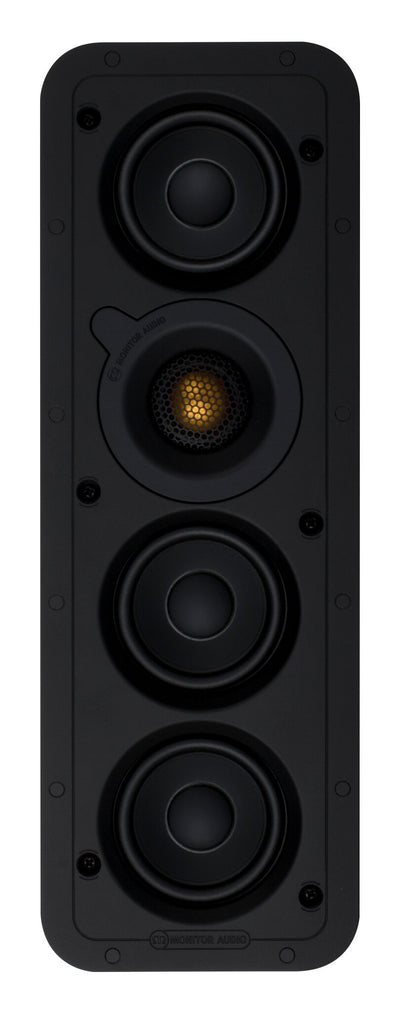

• Three, 3" bass/mid-range drivers featuring incremental technology and performance benefits – MMP II, C-CAM and dished C-CAM cones
• 25 mm C-CAM Gold Dome tweeter used on WSS130 and WSS230 models. WSS430 utilises MPD high frequency transducer from Platinum IC model and flagship Platinum II speaker range
• High quality crossover components – Selected and voiced for amazing sonic performance

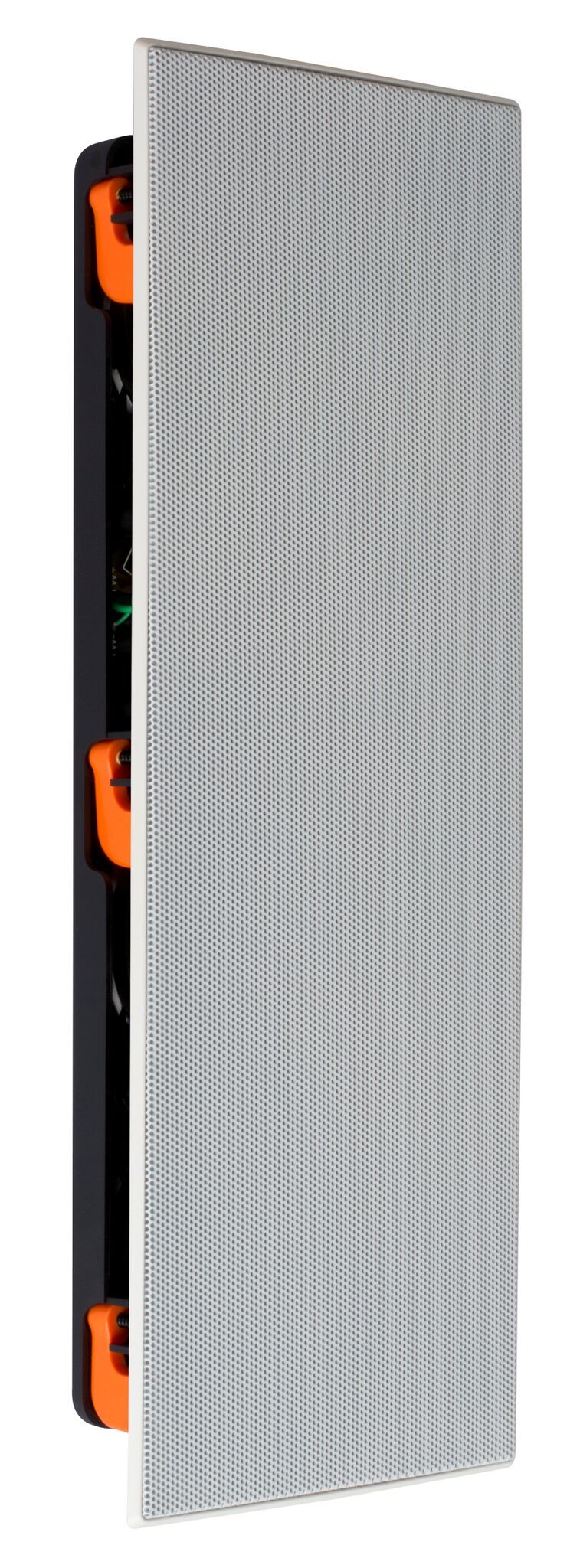

• Magnetically attached ‘trim-less’ grille – discreet, reliable, and easy servicing

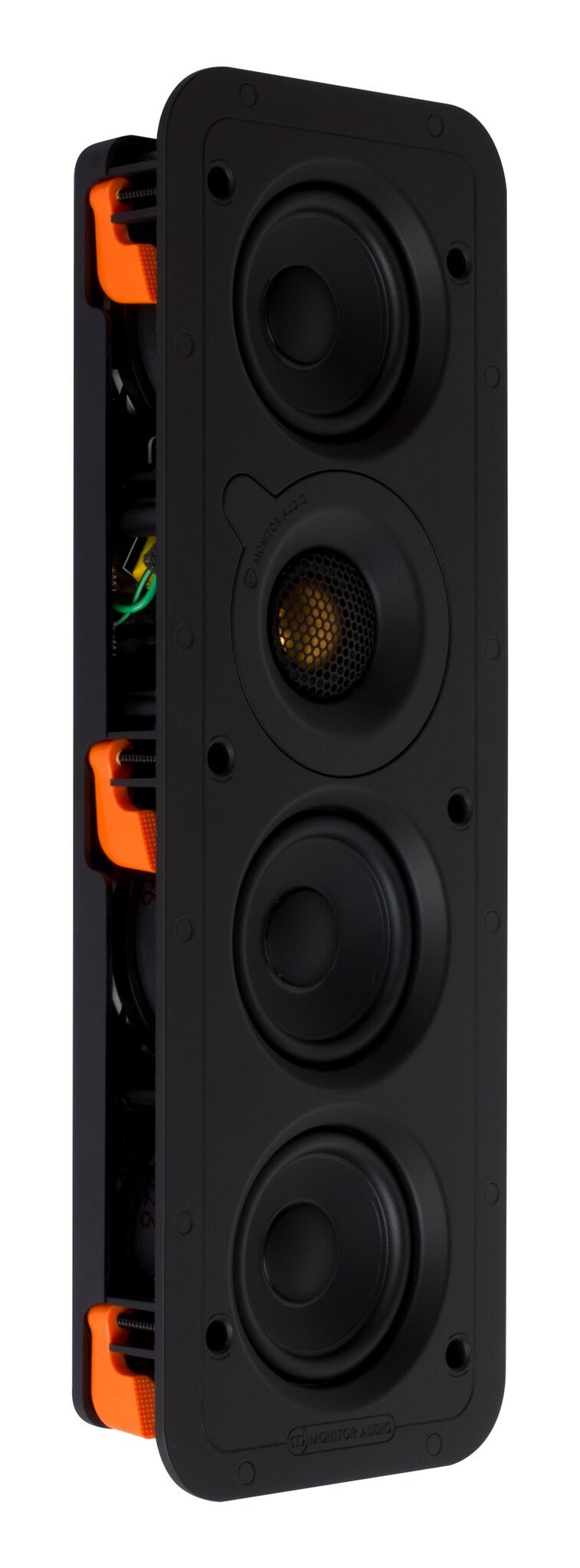

• Tri-Grip Dog leg fixings – reliable, robust, and quick to install
• Gold plated sprung push terminals – easy to connect and reliable
• Paintable grille – to complement and blend with décor
• WSS430 has rotating tweeter for optimum dispersion when used in landscape configuration
• WB3 (dark blue) pre-construction bracket

• Enclosure Type: Open

• Fire Rating: Unspecified

• Guarantee Period (Months): Lifetime

• Output: Mono

• Power Type: Passive

• Weight Each (Kg): 1.4


• Home Cinema

• Home Cinema LCR

• Stereo Music


• Visible Colour: Black

• Visible Shape: Rectangular


• Cutout Dimensions (mm): 346 x 101

• Mounting Depth (mm): 50

• Overall Depth (mm): 54.25

• Overall Dimensions (mm): 385x140.5


• Compatible Amplifier (Watts RMS): 10 - 100

• Frequency range (Hz): 75 - 30000

• Nominal Impedance (Ω): 8

• Max Power High (Watts): 100

• Sensitivity (dB): 87

• Sound Pressure (dB): 105.6


• Bass: 1
• Biggest Driver Size (mm): 76.2
• Tweeter: 1
