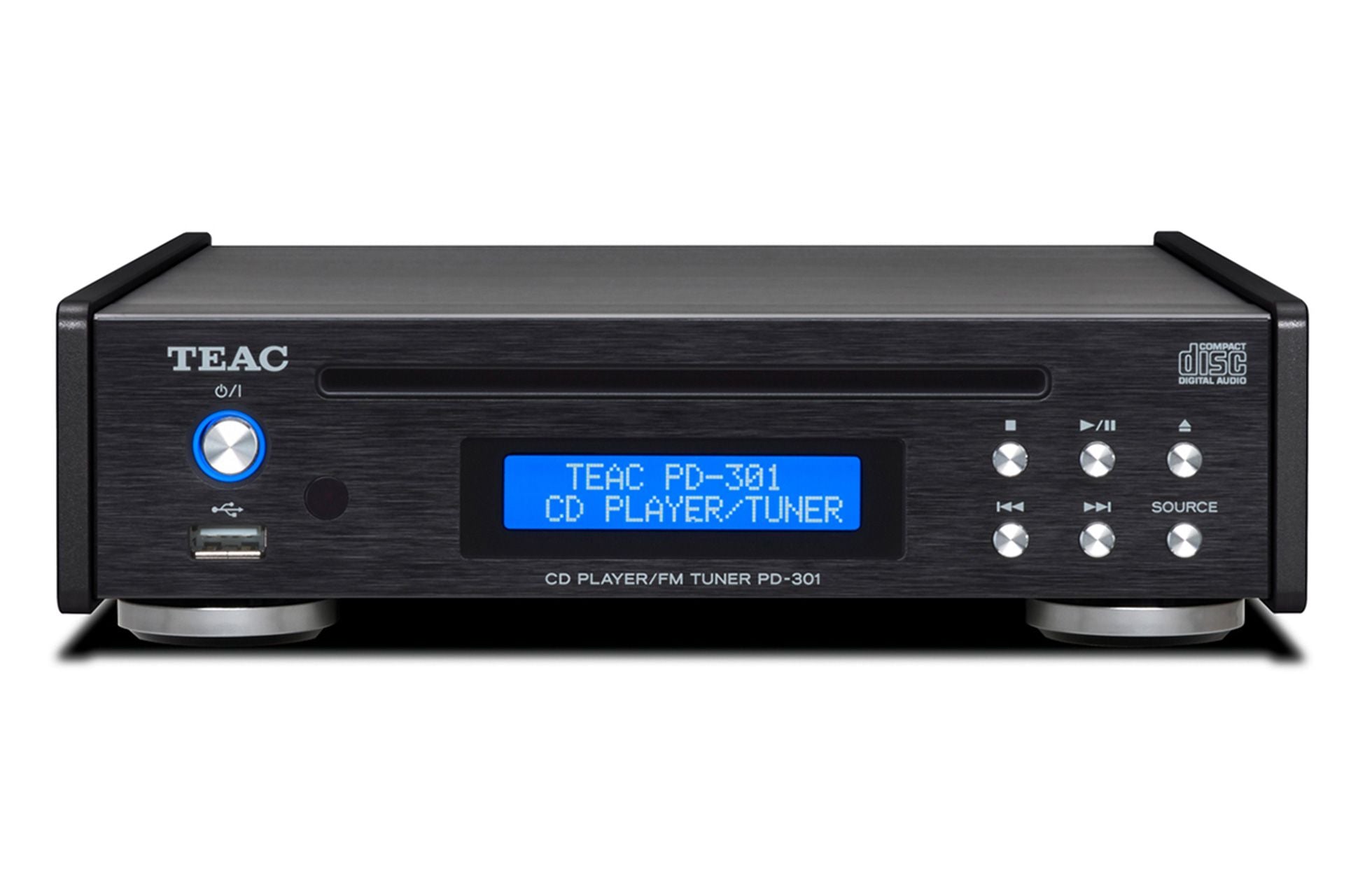

Teac PD-301DAB-X CD-Player and DAB DAB+ FM Tuner Black
Teac PD-301DAB-X CD-Player with DAB DAB+ FM Tuner Black
Unlock the World of High-Precision Audio with our Slot-Load CD Player
Experience audio excellence with the Teac PD-301DAB-X, a versatile CD player and DAB DAB+ FM tuner. Designed exclusively for professional audio applications, the PD-301DAB-X boasts a compact and high-precision slot-load CD drive mechanism that ensures swift loading and automatic playback, letting you immerse yourself in your favorite tunes moments after inserting a CD.
Supporting a Range of Formats for Your Convenience
Versatility is at the heart of the PD-301DAB-X. It effortlessly plays conventional digital audio formats like MP3 and WMA from CD-ROM/CD-R/CD-RW discs. Plus, it's compatible with AAC and WAV formats when you use a USB flash drive in the front USB port. Additionally, this player displays ID3 tag information, song titles, and artist names for MP3, WMA, and AAC files on its user-friendly LC display.
Crystal Clear Sound with a High-Performance 32-bit DAC
Enjoy unparalleled audio quality with the PD-301DAB-X, which features a top-of-the-line 32-bit DAC (digital to analog converter) powered by BurrBrown's PCM5142 technology, ensuring silky-smooth audio reproduction.
Uncompromising Build Quality in a Compact Package
The PD-301DAB-X sports a robust full-metal body with aluminum panels on the front, sides, and top. This construction offers exceptional rigidity, minimizing the impact of unwanted vibrations on sound quality. Despite its sturdy build, it maintains a compact footprint, measuring just 215mm x 232mm (8.5" x 9.1"). You can easily place it on even the smallest desktops.
Explore More with the Built-In DAB+/FM Tuner
Distinguish yourself from the ordinary. In addition to its CD-playing prowess, the PD-301DAB-X houses a built-in DAB+/FM tuner module within its sleek cabinet. It's a CD player that goes the extra mile.
Digital Audio Excellence

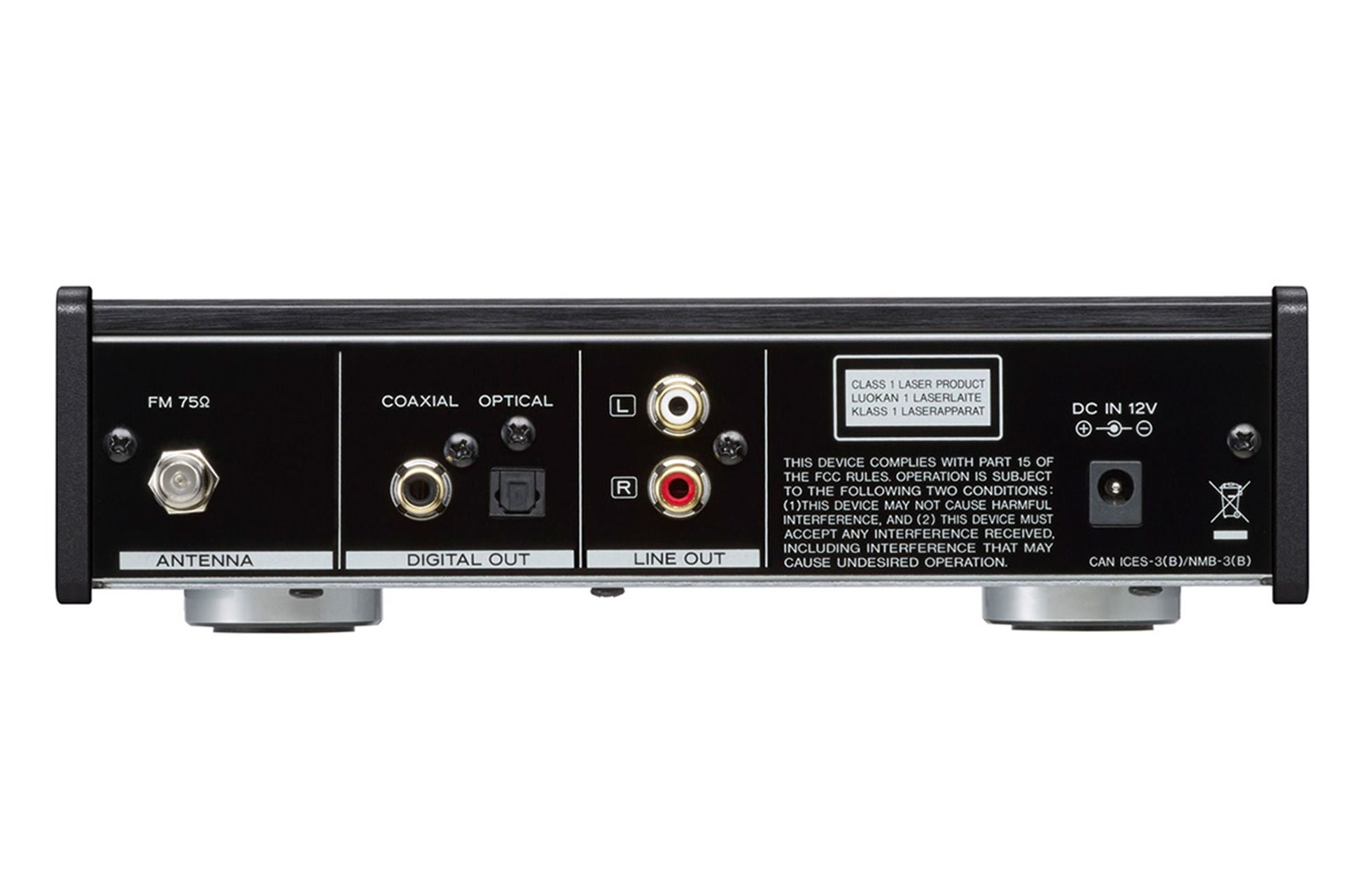

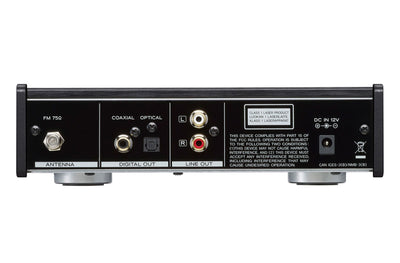

In addition to analog audio outputs, the PD-301DAB-X delivers audio signals from its built-in DAB+/FM tuner through digital audio outputs via coaxial and optical connectors. Whether it's a CD or radio, you can expect exceptional audio quality. Note that the digital audio output format remains a pristine PCM 44.1kHz/16-bit, ensuring a consistent experience regardless of the source's resolution.
Complete Control at Your Fingertips

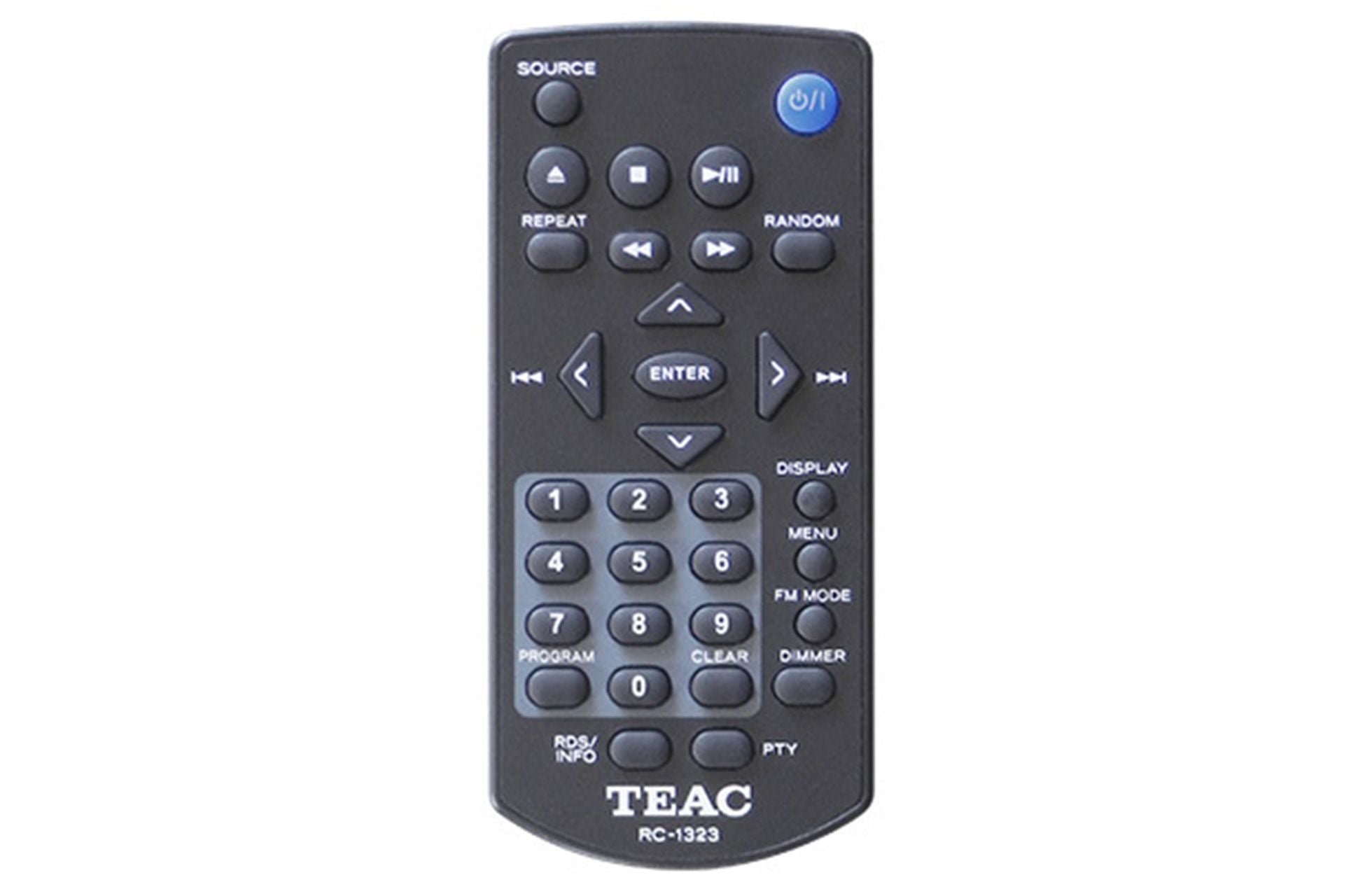

Navigate your audio world effortlessly with the included 10-key remote control, designed for convenience and ease of use. Experience the Teac PD-301DAB-X and elevate your audio experience today.
Technical Specifications
Supported Formats |
|
|---|---|
CD Player Section |
|
| Supported media | CD-DA, CD-ROM, CD-R, CD-RW* (8cm CDs not supported) |
| Max number of files | 300 (including Folders) |
| Max number of folders | 50 |
| Max number of layers | 16 (Max path name: 260 characters including file name) * Supports CD-DA format on CD-RW |
|
|
| Supported USB devices | USB Mass Storage device class |
| Interface | USB2.0 (Full speed), USB1.0 (High speed), USB3.0 compatible |
| File System | FAT16, FAT32 |
| Max number of files | 300 (including folders) |
| Max number of folders | 50 |
| USB bass power | DC 5V, max 500mA |
|
|
WAC (USB Only) |
|
| Extension | .wav, .WAV |
| Bit depth | 16-bit |
| Sampling frequency | 44.1k, 48kHz |
MP3 |
|
| Extension | .mp3, .MP3 |
| Bit-rate | 32k to 320kbps and VBR |
| Sampling frequency | 16k, 22.05k, 24k, 32k, 44.1k, 48kHz |
| Format | MPEG1/2 Audio Layer-3 |
WMA |
|
| Extension | 32k to 320kbps and VBR |
| Bit-rate | 32k to 320kbps and VBR |
| Sampling frequency | 8k, 11.025k, 16k, 22.05k, 32k, 44.1k, 48kHz |
| Format | WMA ver.9 standard (DRM not supported) |
AAC (USB Only) |
|
| Extension | .m4a, .M4A |
| Bit-rate | 8k to 320kbps and VBR |
| Sampling frequency | 8k, 11.025k, 12k, 16k, 22.05k, 24k, 32k, 44.1k, 48kHz |
| Format | MPEG4 AAC-LC (Audio stream) |
|
|
| Band | DAB Band-III, FM |
| Frequency range | DAB: 174 to 240MHz FM: 76.0 to 108.9MHz |
| Number of Presets | DAB: 10 FM: 20 |
|
|
Analogue audio |
|
| Connector | RCA Pin x 1 pair |
| Impedance | 470 ohms or less |
| Max output level | 2.0Vrms (1kHz, Full scale, 10k ohms loaded) |
| Frequency response | 20Hz to 10kHz (-3dB) |
| Signal-to-Noise ratio | 113dB |
| Total harmonic distortion | 0.005% (1kHz) |
Coaxial digital audio |
|
| Connector | RCA Pin x 1 |
| Impedance | 75 ohms |
| Output level | 0.5Vp-p |
Optical digital audio |
|
| Connector | TOS-link x 1 |
| Sampling frequency | 44.1kHz |
| Bit depth | 16-bit |
|
|
| Operating power | AC 100-240V, 50/60Hz |
| Power consumption | 8W |
| Overall dimensions (W x H x D) | 8.5” x 2.4” x 9.4” / 215 x 61 x 238mm |
| Net weight | 4.6 lbs. / 2.1kg |
