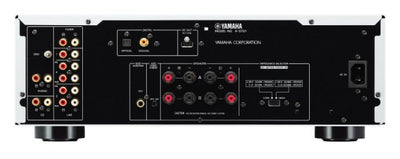

Yamaha AS701B Integrated Amplifier in Black
Yamaha AS701B Integrated Amplifier in Black
Extremely pure sound quality and outstanding drive power. An integrated amplifier with the advantage of digital input.
- ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts
- - I/O (input to output) Direct Symmetrical Design
- - ART (Anti-Resolution and Tough) Base
- - Custom-made power transformer / 12,000uF block capacitors / Aluminum-extruded heat sinks
- 160W x 2 (max), 100W x 2 (RMS) high power output
- CD Direct Amplification and Pure Direct
- Continuous Variable Loudness Control
- Gold-plated speaker terminals and RCA terminals
- Digital audio inputs for TV or Blu-ray Player
- Simple yet sophisticated design (aluminium front panel and knobs)
- Auto Power Standby
SPECIFICATION
| Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz) | 100 W + 100 W (0.019% THD) | |
|---|---|---|
| Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) | 160 W + 160 W | |
| High Dynamic Power/Channel (8/6/4/2 ohms) | 140/170/220/290 W | |
| Damping Factor | 240 | |
| Frequency Response | 10 Hz-100 kHz +/-1.0 dB | |
| Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz) | 0.019% (50 W/8 ohms) | |
| Signal-to-Noise Ratio (CD) | 99dB (input shorted, 200 mV) | |
| Audio In / Out | 8 / 2 | |
| Digital Input | Yes (optical / coaxial) | |
| Subwoofer Out | Yes | |
| DC out | Yes | |
| Pure Direct | Yes | |
| ToP-ART | Yes | |
| Switchable CD Direct Amplification | Yes | |
| Standby Power Consumption | 0.5W | |
| Power Management (Auto Power Standby) | Yes | |
| Dimensions (W x H x D) | 435 x 151 x 387 mm; 17-1/8” x 6” x 15-1/4” | |
| Weight | 11.2 kg; 24.7 lbs. | |
